Clinic Use Infrared Vein Finder Viewer Vein Locator Device Vascular Imaging

Clinic Use Infrared Vein Finder Viewer Vein Locator Device Vascular Imaging

  • Clinic Use Infrared Vein Finder Viewer Vein Locator Device Vascular Imaging
  • Clinic Use Infrared Vein Finder Viewer Vein Locator Device Vascular Imaging
  • Clinic Use Infrared Vein Finder Viewer Vein Locator Device Vascular Imaging
  • Clinic Use Infrared Vein Finder Viewer Vein Locator Device Vascular Imaging
Clinic Use Infrared Vein Finder Viewer Vein Locator Device Vascular Imaging
Product Details:
Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: BS5000
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Carton (71*19*54cm) 9kgs
Delivery Time: 5 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 200 units/month
Contact Now
Detailed Product Description
Type: Handheld Vein Finder Optional: Table Stand Or Floor Stand
Image Resolution: 360*240 Pixel Wavelengths: 850nm And 940nm
Working Methods: Near Infrared Light Warranty: 12 Month
High Light:

vein locating device

,

portable vein finder

Clinic Use High Quality infrared Vein Finder Viewer Locator Vascular imaging



Based on the principle that human hemoglobin has a higher absorption of infrared light than other tissues, Vein finder BS5000 is designed for vein finding and evalution through using safe near-infrared light. Nurses can use it to find more veins and do the venipuncture successfully even in their first trial. Vein finder BS5000 is unique with its World's First Depth Recognition Mode, it assists nurses to detect the depth of vein up to 8mm beneath the skin, which offers great help for peripheral vein access during clinical application.





Product Specification



Feature Name BS5000
Projection type Projection Imaging
Projection tech. DLP projection
Projection mode

normal mode,green light mode,depth

recognition mode ,reverse mode,adult &

kids switching mode

scattering light source near-infrared light wave 850mm
Imaging speed ≤25 frame/s
Optimal imaging distance 300mm±30mm
Image resolution 360x240
Alignment precision ≤0.3mm
Working Temp.& Humidity 0℃~45℃,≤80%RH
Battery DC7.4V 6000mAH
Direction Regulation Any direction
Infrared radiation energy ≤50μW/m2 reference to natural light
Brightness ≤1500Lux
Rated Power 25W
Vein recognition depth 10mm
Battery-powered working time ≤200mins
Continuous working time >4h
Charging Time 8h
Storage temp.& humidity -10℃~45℃,≤80%RH
Adaptor DC 12V,AC 220V 50Hz
Main Size 22cm * 6.5cm * 6.3cm
Main Weight 0.4KG
Stand T size:63cm*50cm*48cm
Lifting adjustable height:280mm
Applicable occasions: fixed place ,e.g.injection room, blood center

fine-tuning lifting by knob



Product Features



Safety Using near infrared light, no laser, no radiation.
Accurate Real show on skin, affectless images of veins.
Fast Focus on vein automatically, show vein immediately.
Non-touch Non-touch to anybody, prevent transmission of the virus.
Wide application Adult, child, obese, dark-skinned and so on. All person available
Free environment Effectively show the vein in dark or bright conditions, indoor and outdoor. Optional battery ensure 2 hours’ continuous working once external power supply is off.
Portable and Flexible Easy to move, fix and operate. One button for power on/off, one button for brightness, one button for color selection Total three Buttons for all operations.
Easy to learn, no need for complicated debugging and maintenance.
Three colors offered black and green vein for being selected according to user’s habit.



Product Images

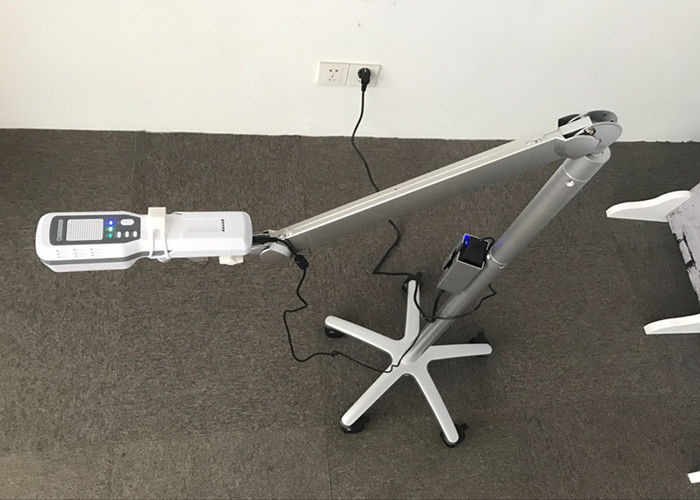

Clinic Use Infrared Vein Finder Viewer Vein Locator Device Vascular Imaging 0

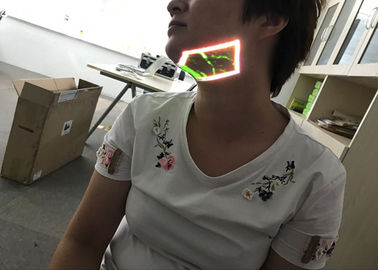

Clinic Use Infrared Vein Finder Viewer Vein Locator Device Vascular Imaging 1

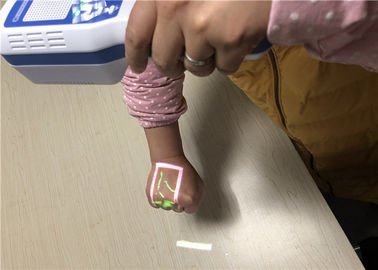

Clinic Use Infrared Vein Finder Viewer Vein Locator Device Vascular Imaging 2



Below is the brochure of vein locator BS5000 for your reference:



E-catalogue for BIO_BS5000 Vein Finder.pdf
