800 * 1280 Resolution Untouched Vein Locator Device 850nm Wavelength High Accurate

800 * 1280 Resolution Untouched Vein Locator Device 850nm Wavelength High Accurate

800 * 1280 Resolution Untouched Vein Locator Device 850nm Wavelength High Accurate

Product Details:

Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: BS6000

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: 1 unit / carton (43.5*33*12.5cm) 3kgs
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month
Contact Now
Detailed Product Description
Working Methods: Near Infrared Light Wavelength: 850nm
Imaging Depth: ≤10mm Radiation: No
Resolution: 800*1280 Best Imaging Distance: 140-180mm

800*1280 High Resolution Untouched Vein Locator Device 850nm Wavelength More Accurate Medical Equipment



Vein finder BS6000 is a special auxiliary device to help nurses and doctors seeking&identifying subcutaneous blood vessels during vein punture.It assist medical staffs during intravenous injection to discover and judge the position&direction of the subcutaneous blood vessels;especially for the blood vessels which are difficult to find by traditional way,so that improve the success rate of puncture.





Working principle



The infrared light as kind of invisible light widely exists in nature;Such as sunlight,heater etc..

Hemoglobin in the blood absorbing infrared light is different from other organizations;Using certain wavelength of infrared radition to the skin,hemoglobin in subcutaneous blood vessels will absorb more infrared light,and other organizations of absorption are less,so that we can distinguish the blood vessels and other organizations in infrared images.Infrared image is taken by infrared camera,after optimization and highlightling the color&shape by professional image processing software, then output the pictures

on the screen,or projection methods,we can clearly see the subcutaneous vascular distibution.location.direction.etc.





Product Advantages

  1. Large 8inch screen,high-resolution display,more clear image
  2. Professional medical image processing system
  3. Screen display more suitable for human visual habits,no glare and fatigue
  4. Real and reliable image,visual effect more close to naked eye
  5. Needle clearly visible during puncture,easy to operation
  6. No artifacts interference by hair,wrinkles,embossment etc
  7. Delicate and portable,equipped with specified support,suitable for any occasion

Technical Parameters



Item Parameter
Image model 8 inch touch screen
wavelength 850nm
imaging technology 2 million pixels infrared camera
imaging speed >32 frame/second
imaging depth ≤10mm
resolution 800*1280
registration accuracy <0.2mm
best imaging distance 140-180mm
infrared light energy 0.36w
battery working time 4h
charging time 4-5h
stent type desktop
gross weight 1950g
packing size 360*310*230mm

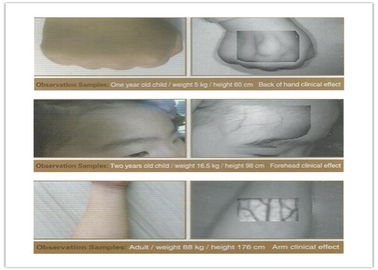

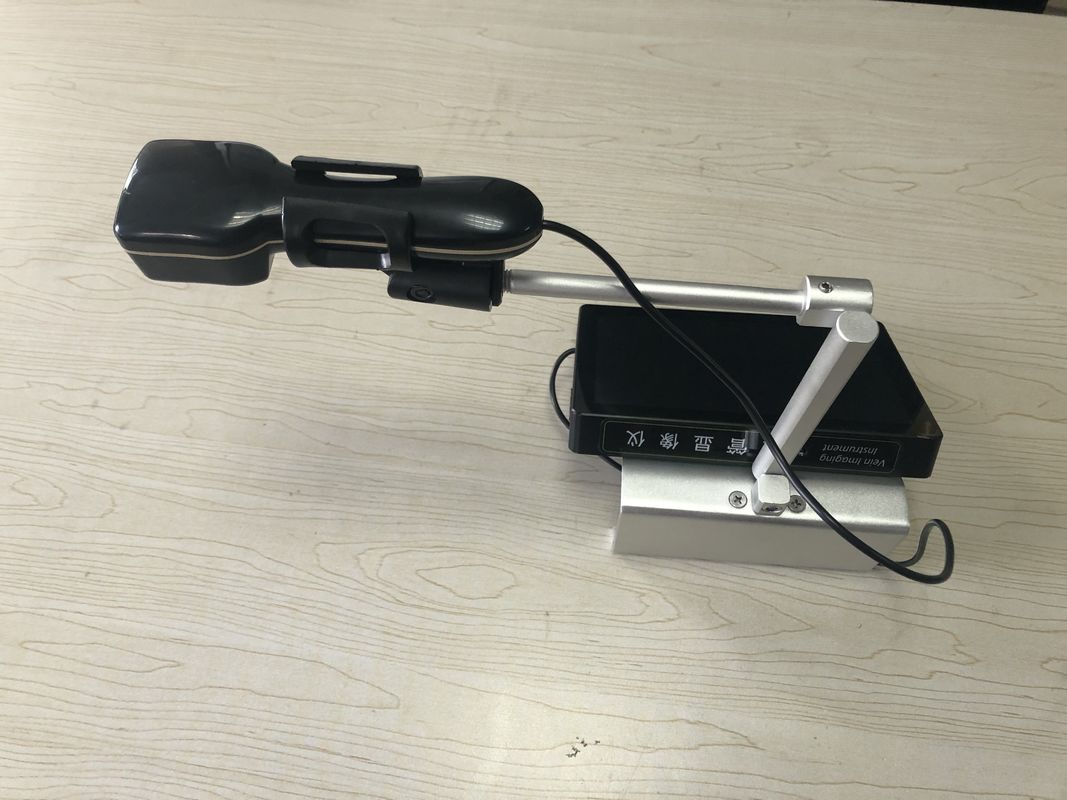

Product image



800 * 1280 Resolution Untouched Vein Locator Device 850nm Wavelength High Accurate







800 * 1280 Resolution Untouched Vein Locator Device 850nm Wavelength High Accurate



catalogue for vein finder BIO_BS6000.pdf
