Product Details:
|
| Working Modes: | Auto / Manual / R-R Rhythm / Storage | Display: | 800*480, 7 Inch Color LCD |
|---|---|---|---|
| Paper: | 210/215mm*20m Roll Or 210*140mm Fold, High Resolution Thermal Paper | Language: | English, Chinese, French, Italian, Spanish, Russian |
| Dimension: | 347mm*293mm*83mm | Weight: | 4.8kgs |
| High Light: | portable ecg device,portable ecg machines |
||

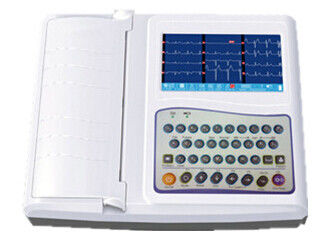

12 Channel Digital ECG Monitor 7 Inch Color LCD
Feature
● Portable delicate design, big color display and soft alphanumeric keyboard operation
● Accurate pulse pace identification and excellent auto – interpretation function
● High accuracy digital filter, auto - baseline adjustment
● 12 leads synchronously acquisition and record
● Working modes: Auto / Manual / R-R Rhythm / Storage
● 800*480, 7 inch color LCD to display detailed ECG information
● 250 cases storage and reply (SD card storage is optional)
● Rechargeable Li-ion battery supports continuous working for 4 hours
● Recording Mode: 3ch+++, 6ch, 6ch+, 12ch
● Real-time freeze function
● 210/215mm*20m roll or 210*140mm fold, high resolution thermal paper to print ECG
● Dimension: 347mm*293mm*83mm, 4.8kgs
● Rs232 and USB interface support USB disk storage, laser printer printing and code scanning (optional),
ECG software is optional.
● Language: English, Chinese, French, Italian, Spanish, Russian
Specification:
| Lead | Standard 12 leads | Time constant | ≥3.2s |
| lead acquisition | 12bit/1000Hz(synchronously 12 leads) | Frequency response | 0.05～160Hz(-3db) |
| Work mode | 22 Series:Man / Auto/Analysis | Noise level | ＜15μVp-p |
| 33 Series: Man / Auto/Analysis/Storage | |||
| Filter | AC Filter : 50Hz / 60Hz | Inter-channel Interference | ≤0.5mm |
| EMG Filter : 25Hz / 45Hz | |||
| Anti-Drift Filter : 0.15Hz (Adaptive) | |||
| CMMR | ≥100dB (with AC FILTER) | Sensitivity | 5,10,20, 40, Auto (mm/mV) |
| Input circuit | Floating; Protection circuit against | Recording mode | 3ch+++,6ch,6ch+,12ch |
| Defibrillator effect | Default Man. Mode is 3ch+ format | ||
| Default Auto. Mode is 12ch+ format | |||
| Input Impedance | ≥50MΩ | Paper speed | 6.25,12.5,25,50mm/s(±3％) |
| Input circuit current | ≤0.05μA | Paper | 215 mm*20m Roll paper |
| 210mm*140mm Z-fold paper (only for 33 series) | |||
| Patient current leakage | ＜10μA | Communication | RS232/ USB port |
| Calibrating voltage | 1mV±2％ | Power Supply | AC 110-230V(±10%),50/60Hz(±1Hz),60VA |
| DC Built-in rechargeable battery,14.4V(4400mmAh) | |||
| Voltage tolerance | ≥±500mV | Dimension/Weight | 330mm×270mm×72mm/3.8Kg |
