Product Details:
|
| Working Methods: | Near Infrared Light | Display Mode: | Projecting To Human Skin |
|---|---|---|---|
| Light Source: | LED | Radiation: | No |
| Screen: | 8 Inch | Wavelength: | 850nm |
| High Light: | vein locating device,portable vein finder |
||
Medical Touch Screen Transilluminator Infrared Vein Locator Detector Device With 10mm Imaging Depth
Vein finder BS6000 is a special auxiliary device to help nurses and doctors seeking&identifying
subcutaneous blood vessels during vein punture.It assist medical staffs during intravenous injection
to discover and judge the position&direction of the subcutaneous blood vessels;especially for the blood vessels
which are difficult to find by traditional way,so that improve the success rate of puncture.
Product principle
According to surrounding tissues, blood vessels, oxygenated hemoglobin in the near-infrared light of different wavelengths absorbed dose is different, through photoelectric conversion and image processing, the information will shoe clear veins. Improved version of the portable model adopted the new technology, enhances version of the variety of color mode, can more effectively improve the resolution and identification.
Application people
Infants
Children
Obese patients
Patients with edema
Patients with tumor and chemotherapy
Patients with venous blood vessels
Product Advantages
Technical Parameters
| Item | Paremeter |
| Image model | 8 inch touch screen |
| wavelength | 850nm |
| imaging technology | 2 million pixels infrared camera |
| imaging speed | ＞32 frame/second |
| imaging depth | ≤10mm |
| resolution | 800*1280 |
| registration accuracy | ＜0.2mm |
| best imaging distance | 140-180mm |
| Item | Paremeter |
| infrared light energy | 0.36w |
| battery working time | 4h |
| charging time | 4-5h |
| stent type | desktop |
| gross weight | 1950g |
| packing size | 360*310*230mm |

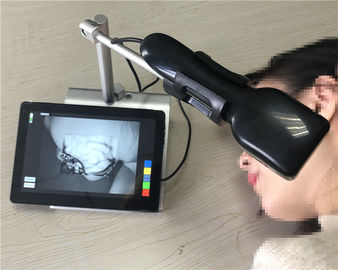

Product Picture
catalogue for vein finder BIO_BS6000.pdf
