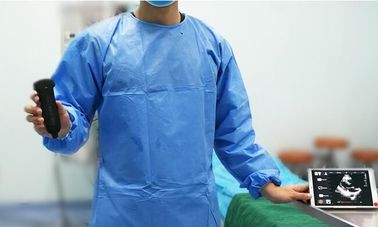

2 -11MHz Hand Held Color Doppler Ultrasound Scanner Like A Mobile Phone

2 -11MHz Hand Held Color Doppler Ultrasound Scanner Like A Mobile Phone
2 -11MHz Hand Held Color Doppler Ultrasound Scanner Like A Mobile Phone
2 -11MHz Hand Held Color Doppler Ultrasound Scanner Like A Mobile Phone 2 -11MHz Hand Held Color Doppler Ultrasound Scanner Like A Mobile Phone 2 -11MHz Hand Held Color Doppler Ultrasound Scanner Like A Mobile Phone 2 -11MHz Hand Held Color Doppler Ultrasound Scanner Like A Mobile Phone 2 -11MHz Hand Held Color Doppler Ultrasound Scanner Like A Mobile Phone

Large Image :  2 -11MHz Hand Held Color Doppler Ultrasound Scanner Like A Mobile Phone

Product Details:
Place of Origin: China
Brand Name: BIO
Model Number: W8A
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Carton (10X20X15cm) 1kg
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month

2 -11MHz Hand Held Color Doppler Ultrasound Scanner Like A Mobile Phone

Description
Transducer Frequency: 2 -11MHz Modes: B, M, 2B, THL, Color, Power, PW (only Color Doppler Version Have Color, Power, PW)
Max Scanning Depth: 310mm Supporting Devices: Android Tablet Or Smart Phone, Windows PC, IPhone And IPAD
Probe Heads: All Types Of Detachable Transducers Supported Size: 150mm*40mm*25mm
Weight: 160g Warranty: 12 Months
High Light:

hand held doppler

,

handheld doppler ultrasound



Home Ultrasound Machine Color Doppler Ultrasound Scanner Like a Mobile Phone



Advantage
1.
Weight only about 160g, with the size about a cellphone, can be carried to anywhere you need.
2. One control unit handles various applications just by changing a probe head.
3. One probe for both abdomen and cardiac
4. Multi mode supports: B, B&M, C, P, PW
5. Compatible to Windows / Andriod / iOS. Wireless connection between ultrasound probe and mobile screen. Your mobile ohone, tablet or computer can transform immediately into an whole ultrasound device. (Supports iOS, Andriod and Windows).
6. Wifi & USB connection supported.
7. Advanced workflow, ergonomic design, easy to operate.
8. Waterproof: IPX4
9. Extremely low energy consumption (Max. 3W), 4 hours continous scanning time.



Specifications

Net weight About 160g
Size 150mm*40mm*25mm
Battery time >=4 hours
Waterproof level Ipx4
WIFI coverage distance >= 6m
Platform Android, Windows, IOS
Connection Type WiFi &USB
Supporting devices Android tablet or smart phone, Windows PC, IPhone and IPAD.
Probe heads All types of detachable transducers supported.
Modes B, M, 2B, THI, Color, Power, PW​ (only color Doppler version have Color, Power, PW)
Gray level 256
Transducer Frequency 2-11MHz
Max scanning Depth 310mm
Digital Technology

Wide-angle imaging

Panoramic focusing technology

Frequency compounding Space compounding

Rolling M technology

Real-time Dynamic Aperture

Tissue Harmonic Imaging

Tissue Specific Imaging



Controls

Gain TGC Depth C Scale/Vel
Frequency C Gain
Focus Position C Frequency
Dynamic Range C Steer
Frame Correlation/Persistence
TSI
Enhance PW Steer
Gray Map PW SV Size
Acoustic Power PW BaseLine
Qbeam/CrossBeam Time Mark(Only Windows)
Expand mode PW Speed
Biopsy GuideLine PW Auto Calculation
Left/Right Flip Up/Down Flip PW Auto Calculation Parameters



Function

Cine-loop 400 frames movie playback stored
Zoom Max 10 times
Qopt One-key optimization
Language Chinese, English, (All systems)Russian, Spanish, Italian, Czech, German (only Windows)
DICOM DICOM 3.0
Other function Patient information Management (only Windows)



Measurement and calculation

B mode Distance, angle, area, volume,​ trace length, distance ratio, area ratio, histogram
M mode Distance, time, slope, heart rate
Calculation Packages

Ob/Gyn: Measurements: Distance/Ellipse/Trace/Volume, GS, CRL, BPD, HC, AC, FL, AFI, Cervix Len gth,

Calculations: Estimated Fetal Weight, Estimated Due Date

Cardiac:

Measurements: Distance/Ellipse/Trace/Area, RVWd, RVDd, IVSd, LVDd, LVPWd, RVWs, RVDs, IVSs, LVPWs, MVA, AVA

Calculations:

Ejection Fraction, Fractional Shortening, Volume Area, Stroke Volume, LA/Ao, CI, SI (Above items are for Windows APP. For Android and IOS APP, the measurements include Distance, Angle, Area, Time, Heart Rate, Speed)

Full measurement packages, report and patient list support only for Windows

Application packages Abdomen, Small parts, Vascular, Obstetrics, Gynecology, Cardiology, Neurology, Urology, Orthopedics, Anesthesia



Software Compatibility

iOS

iOS version 9.0 or newer

Mobile devices: iPhone 5S (or newer), iPod Touch (5th gen or newer)

Apple iPhone 6s, 6s Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS Max and XR

Tablet device: iPad (3rd gen or newer), iPad Air (1st gen or newer),

iPad Mini (1st gen or newer),

iPad 5th gen, 6th gen, iPad Pro

Android

Android device 5.0 or newer

Mobile devices: HUAWEI mate 8, mate 9, mate 20, P10, P20, P30, P30 pro, Honor.. Tablet device: HUAWEI MediaPad M5 M3

Windows Windows XP, Win7, Win8, Win10 PC (with dual core processor CPU)



Working Power Supply

AC Adaptor output Voltage 5V Output current 2A
Battery Lithium-Ion Battery Pack: 7.4V, 1300mAh
Recharge time ca. 2 hours(for full recharge)
Scan time ca. 4 hours continuous scanning time
System Bootup Less than 5 seconds



Working Environment

Ambient Temperature 0℃-32℃
Relative Humidity 30%-85%
Atmospheric Pressure 700hPa-1060hPa



Multiple frequency probes

Probe image Probe type Model Frequency (MHz) Frequency Range Radius of Curvature Application
Medical Ultrasound Scan Machine Color Doppler Ultrasound Scanner with Cardiac Transducer Convex&Cardiac difunctional C5-2Fs 3.3 2~5 R50

Emergency

Cardiac,

Abdomen, Obstetrical, Gynecology, Urology, Lung

Medical Ultrasound Scan Machine Color Doppler Ultrasound Scanner with Cardiac Transducer Convex C5-2Ks 3.5 2.5~5 R60 Abdomen, Obstetrical, Gynecology, Urology, Lung
Medical Ultrasound Scan Machine Color Doppler Ultrasound Scanner with Cardiac Transducer Linear L11-4Ks 7.5 6~11 L40 Vascular, Small Parts, Breast, MSK, Nerve, Orthopedic, Anesthesia
Medical Ultrasound Scan Machine Color Doppler Ultrasound Scanner with Cardiac Transducer Small Linear L11-4Gs 8.0 6~11 L25 Nerve, Anesthesia, Vascular, Small Parts, Breast, MSK, Orthopedic
Medical Ultrasound Scan Machine Color Doppler Ultrasound Scanner with Cardiac Transducer Micro-convex C8-5Ks 6.5 5~8 R15 Neonatal Abdomincal, Small Parts, Neonatal Cardiac, Small Animals
Medical Ultrasound Scan Machine Color Doppler Ultrasound Scanner with Cardiac Transducer Transvaginal E10-4Ks 6.5 5~8.5 R10 Obstetrics, Gynecology, Urology, IVF, Pelvic





Standard Configurations

1. Wireless system main unit
2. One Probe head
3. APP software
4. Power Adapter
5. Type-C cable
6. Carrying case
7. 24 months warranty since ex-factory date for main unit
8. 12 months warranty since ex-factory date for probe heads



​Images

Medical Ultrasound Scan Machine Color Doppler Ultrasound Scanner with Cardiac TransducerMedical Ultrasound Scan Machine Color Doppler Ultrasound Scanner with Cardiac Transducer





Medical Ultrasound Scan Machine Color Doppler Ultrasound Scanner with Cardiac Transducer
