PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry

PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry
PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry

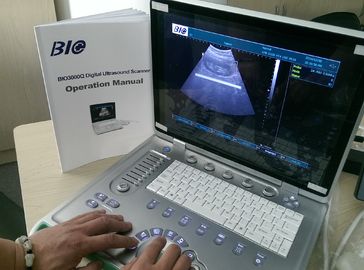

Large Image :  PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry

Product Details:
Place of Origin: China
Brand Name: BIO
Model Number: 3000Q
Payment & Shipping Terms:
Minimum Order Quantity: 30 sets
Packaging Details: Carton (50*25*52cm) / 10.5Kg
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month

PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry

Description
Color: Silver Display: 15 Inch LED Screen
Probe Connector: 2 Battery: Built-in Working For 5 Hours Continuously
Image Store: By Hardisk Or USB Disk Dimension: 362mm×340mm×60mm
Net Weight: 4.8kg Warranty: 12 Months
High Light:

portable ultrasound machine

,

portable ultrasound device

PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry



Technical Specification

Maximum Scanning Depth max. 250mm
Multi-frequency 5 segment frequencies
Scanning mode B, 2B, B/M, M, 4B, 9B, ZOOM
Real-time Zoom on B mode
Image gray scale 256 level gray scale
Image processing Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision
Gain 0-100dB
Time gain control(TGC) 8 segment adjustment, B, M adjustment separately





PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry 0



Measurement and calculation

B mode distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram
M mode heart rate, time, distance, slope and stenosis
Gynecology measurement Uterus, cervix, endometrium, L/R ovary
Obstetric gestation age, fetal weight, AFI
Cardiology LV, LV function, LVPW, RVAWT
Urology transition zone volume, bladder volume, RUV, prostate, kidney
Small parts optic, thyroid, jaw and face
Veterinary software(optional) Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD



Others

Supported output apparatus U-Disk, Laser/ink printer, video printer, VGA
Zoom 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
Image store by hardisk or USB disk
3D image function(function) can get rebuilt 3D image, Optional
Work time by built-in battery about 5 hours
Monitor 15 inch color LED screen
Probe Connector 2
Dimension 362mm×340mm×60mm
Weight Around 4.8Kg



Ultrasound images

PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry 1



PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry 2



PC Based B / W Portable Ultrasound Scanner 15 inch Laptop Screen Only 5kgs Weight Convenient to Carry 3
