    Product Details:

    Place of Origin: China
    Brand Name: BIO
    Model Number: 3000M
    Type: Portable Ultrasonic Diagnostic Devices
    Screen: B/W 10.1" TFT LCD
    Unit size/Weight(main unit): 25.5x19x3(cm)/1.5KGs
    Bag size/Weight(whole set): 37x27x6(cm)/5.5KGs
    Main Feature: Slimming, best cost of performance

    Payment & Shipping Terms:

    Minimum Order Quantity: 30 sets
    Packaging Details: Carton (37*27*6cm / 5.5kg)
    Delivery Time: 7 working - days since getting full payment
    Payment Terms: Credit card, Paypal, T/T
    Supply Ability: 200 units / month
    Contact Now
    Detailed Product Description
    Color: Black Warranty: 24 Months
    Image Mode: B, B+B, 4B, B+M, M Gray: 256
    Monitor: 10” High-resolution TFT LCD Detectable Depth: ≥160mm
    Cine Loop: 192 Permanent Storage: 1024
    Measurements: Distance, Circumference, Area/perimeter, Volume Heart Rate, Pregnant Week, Fetal Weight, Etc Adjustable Biopsy Guideline: Guidance For Puncture

    Mobile diagnostic Digital Laptop Ultrasound Scanner  B /  W 10.1 "  TFT LCD with Convex Linear Transvaginal probes



    DESCRIPTION

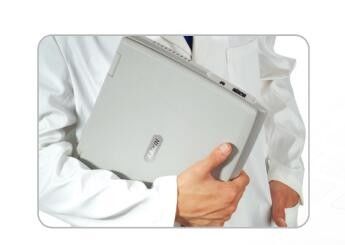

    BIO 3000M, a full digital notebook ultrasound/ultrasonic scanner with extremely slimming appearance, is easy to carry (1.5 kg with a probe) and has powerful functions for multiple diagnosis purposes. High cost performance solution for family doctor, Individual clinics, medical team, emergency center and hospital doctor.





    HIGH IMAGING QUALITY

    10.1” B/W TFT screen with high resolution (1024*768), optimizing image with advanced dynamic pre-processing and post-processing program, and Pseudo- color supported





    HIGH SENSITIVITY PROBE

    Wide range of probe frequency covering different diagnosis applications. Convex probe is standard configuration. Trans-vaginal probe, linear probe and micro convex probe are optional





    Standard configurations Optional
    3000M main unit 6.5MHz Trans-vaginal probe
    10”high-resolution TFT LCD 7.5MHz linear probe
    1pc 3.5MHz R60 convex probe 5.0MHz micro-convex probe
    One connector
    192 frames cine-loop
    1024 permanent storage
    OB report
    OB & GYN & Cardiac software
    2 USB ports & 1 mini2.0USB port
    Li-ion battery





    Speicification

    Scan mode Electronic linear scan, Electronic convex scan
    Power supply AC 100~240V, 50/60Hz
    Power consumption ≤200VA
    Scanning depth ≥170mm(depend on probes)
    Gray scale 256
    Geometric position precision ≤5%(depend on probes)
    Average no failure operation period ≥3000 hours
    Performance
    Image mode                        B, B+B, 4B, B+M, M
    Gray                                        256
    Display                                     10” high-resolution TFT LCD
    Probe frequency                     2.5~10MHz
    Probe connector                      1
    Lateral resolution                   ≤3mm (depth ≤80mm)
    ≤4mm (80mm≤depth ≤130mm)
    Longitudinal resolution           ≤2mm (depth ≤80mm)
    ≤3mm (80mm≤depth ≤130mm)
    Detectable depth                    ≥160mm
    Blind area:                                 ≤5mm
    Geometrical position distortion  Lateral≤15
    Longitudinal≤10
    Imaging Processing
    Pre-processing Continuously variable aperture
    TGC (Near Middle Far)
    Dynamic filtering
     Dynamic Range
    Edge enhancement
    Frame correlation
    Smooth
    Post-processing Gray map
     Black/white reverse
     Left/right reverse
     Up/down reverse
    Functions
    Cine loop                              192 frames cine loop memory
    Zoom                                      ×0.8×0.9×1.0×1.1×1.2×1.3×1.4×1.5
     Magnifications in real time
    Permanent Storage               1024
    Storage media                        Massive image-storage capacity (external)
    USB disk
    SD card
    Front panel control               Brightness, overall gain of the image
    Focusing method                    Automatic multi-stage focusing
    OSD (On Screen Display)      Date, Time, age, sex, Patient ID and hospital information, Gain,
    Focusing, Comments, Scroll, Zoom setting
    Measurements                      Distance, circumference, area/perimeter, volume heart rate, pregnant week, fetal weight, etc
    Body-marks                            More than forty different body-markers
    Adjustable biopsy guideline  Guidance for puncture
    Sleep mode                               Save energy and protect screen and probe
    Parameter Preset                      Suitable present for different application (Gynecology, Heart, Abdomen)
    Measurement & Calculations
    B-mode                                       Distance, circumference, area, volume
    M-mode                                      Distance, velocity, heart rate
    Software package                 Abdomen (Distance, circumference, area, volume)
    GYN/OB (EDD, GA, BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD, FW)
    Cardiology (Sam, SL, SAI, SD, Dam, DL, DAI, DD, ESV, EDV, SV, EF)
