PAL Color System AV Signal Digital Electronic Colposcope With TF Card And Monitor

PAL Color System AV Signal Digital Electronic Colposcope With TF Card And Monitor

    • PAL Color System AV Signal Digital Electronic Colposcope With TF Card And Monitor
    • PAL Color System AV Signal Digital Electronic Colposcope With TF Card And Monitor
    • PAL Color System AV Signal Digital Electronic Colposcope With TF Card And Monitor
    • PAL Color System AV Signal Digital Electronic Colposcope With TF Card And Monitor
  • PAL Color System AV Signal Digital Electronic Colposcope With TF Card And Monitor

    Product Details:

    Place of Origin: China
    Brand Name: BIO
    Certification: CE
    Model Number: BS2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: Carton (25.5*15.5*7cm) 1kg
    Delivery Time: 7 working - days since getting full payment
    Payment Terms: Credit card, Paypal, T/T
    Supply Ability: 1000 units / month
    Contact Now
    Detailed Product Description
    Image Transmit: AV Output, Connect To TV Or Computer Or Screen Power Supply: DC 4.5V, AAA Batteries (×3)
    Output Signal: PAL Color System, AV(video)signal Dimensions (L×W×H Mm): 126×40×34
    Effective Range Of Observation: 70mm~100mm

    AL Color System AV Signal Digital Electronic Colposcope With TF Card


    Standard Configurations



    1 unit main unit
    2 pcs disposable heads (one small size + one middle size)
    1 pc cable connected to Television
    1 pc user's manual



    General Descriptions



    Image transmit AV output, connect to TV
    Examination type Performing cervical self-examination at home
    Advantage

    Electronic colposcope, advanced technology

    Discover earlier , healthy more

    Monitor treatment and prevent recurrence

    The privacy is under your control

    Echo-friendly & easy use
    High definition display
    Self - inspection
    Cheap cost



    Specifications



    Power Supply DC 4.5V, AAA batteries (×3)
    Output Signal PAL color system, AV(video)signal
    Normal Working Conditions temperature:15°C—30°C
    humidity:≤93%RH
    pressure:700hPa—1060hPa
    Conditions of Storage and Transport temperature:-20°C~+45 °C
    humidity:90%RH
    pressure:700hPa—1060hPa
    Weight about 50g (batteries non-included)
    Dimensions (L×W×H mm) 126×40×34
    Safety Class internal battery BF
    Technical Index effective range of observation 70mm~100mm
    angle of observation 20°, permit error -10%,no upper limit
    resolution 2.5 lp/mm, permit error -10%,no upper limit



    Disposable head

    size

    parameters

    S M Notes



    Outline Dimension

    Length (movable bill) 98±2 109±2

    Size S is for female before childbirth or age above 50s

    Size M is for female after childbirth and age below 50s.

    Width (of the bill) 20±1 27±1
    Height of Front Outside Mouth Minimum 31±5 40±5
    Maximum 60±5 67±5

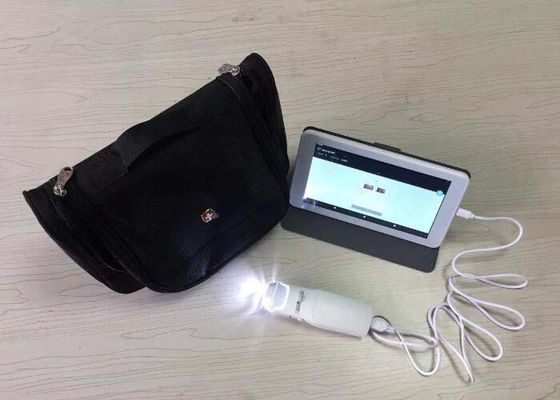

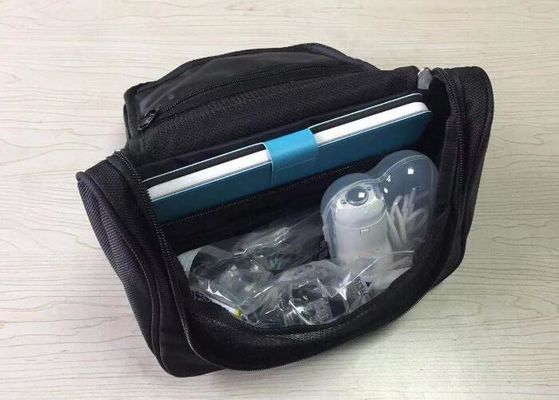

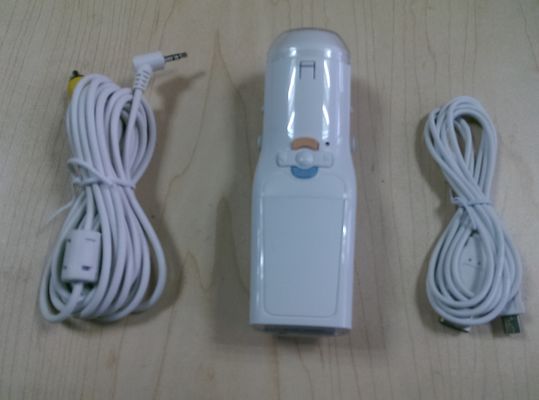

    Photoes of actual unit



    PAL Color System AV Signal Digital Electronic Colposcope With TF Card And MonitorPAL Color System AV Signal Digital Electronic Colposcope With TF Card And MonitorPAL Color System AV Signal Digital Electronic Colposcope With TF Card And Monitor





    E-catalogue of mini-colposcope_BS2.pdf

    User Guide for BIO_BS2 Mini Colposcope.pdf
