Product Details:
|
| B&W Mode: | B、B/B、B/M、CFM、CFM/B、PDI、PDI/B、PW.CW | Gray Scale: | 256 |
|---|---|---|---|
| Display: | 15”LED Monitor | Probe Connector: | 2 |
| USB Port: | 2 | THI: | Tissue Harmonic Imaging |
| Qopt: | One-key Optimize | Depth Display: | ≥300mm |
| Dynamic Range: | 0~120dB Adjustable | Disk Capacity: | ≥160G |
| High Light: | handheld doppler ultrasound,hand held doppler machine |
||

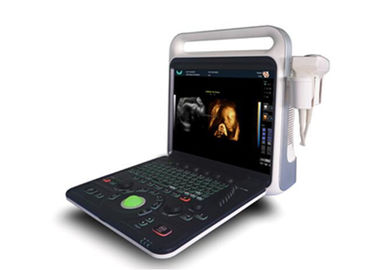

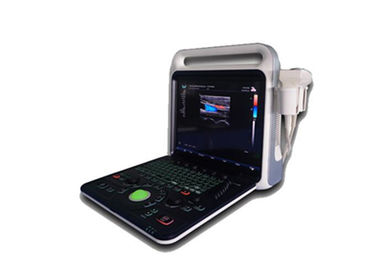

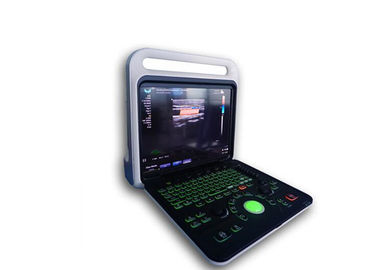

4D Laptop 15 Inch LED Diagnostic Color Doppler Machine Veterinary Ultrasound Scanner
General Specifications
-- Size and weight: 470mm(L)* 335mm(W)* 560mm(H)/ 11 KG
-- power source: 19V,10A DC IN, Support battery power
-- Optional battery:10Ah,14.4V.
-- Battery Operating Time:2 hours Standby time: ≥3.5 Hours
-- Display: 15 inch high brightness and high contrast LCD
-- Range of application: Systemic applications include abdominal, obstetric, gynecological, cardiac, vascular, urinary, small organ, breast, pediatric and neonatal imaging, fetal heart imaging, puncture, etc.
Main Parameter
15〞tilt-and-swivel HD LED monitor.
Scanning mode: Convex,Trans-vaginal, high-frequency linear array,Micro-convex;4D array;.
Modes: B,B/B,B/M,CFM,CFM/B,PDI,PDI/B,PW.CW.
B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;
B/D/PW real-time Triple
Support the five languages.
Gray scale: 256 levels.
Depth display: ≥300mm;
Dynamic range: 0~120dB adjustable.
One-click optimization function.
Self-motion optimize function.
Image multiplying factor.

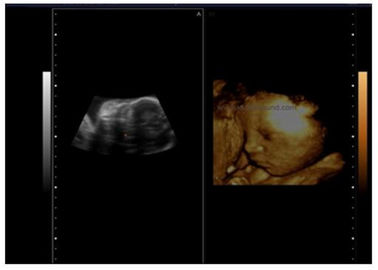

Image mode: digital beam forming, tissue harmonic imaging.
picture in picture zoom in and zoom part function.
Image storage, video storage, cine loop, disk toragecapacity≥160G;
Frequency conversion: 2MHz-12MHz(Depending on the probe)
16 kinds of pseudo color encoding can optional.
E-zoom: magnify 2 times of real time image.
Focus position: dynamic electron focusing.
Probe parameters
-- Convex: R60 (R50) Center frequency 3.5MHz (range: 2-6MHz)
-- Linear: Center Frequency 7.5MHz (Range: 5-12MHz)
-- High-frequency Linear : Center frequency 9MHz (range: 5-13MHz)
-- Cavity probe(TVS): center frequency 6.5MHz (range: 5-10MHz)
-- Micro-convex: center frequency 3.5MHz (range: 3-6MHz)
-- High-frequency micro-convex probe: the center frequency of 5MHz (range: 4-8MHz)
-- Phased array probe: 3 MHz (range: 2-5MHz)
-- 4D probe : Center frequency 3 MHz (range: 2-5MHz)
Specification
| Monitor | 15' HD LED monitor |
| Probe connector | 2 |
| Probe holder | 2 |
| USB Port | 2 |
| Scanning mode | Convex,Trans-vaginal, high-frequency linear array,Micro-convex;4D array |
| Modes | B,B/B,B/M,CFM,CFM/B,PDI,PDI/B,PW.CW |
| B/D dual-purpose | linear array: B/PWD |
| convex array: B/PWD | |
| B/D/PW | real-time Triple |
| Languages | 5 |
| Gray scale | 256 levels |
| Depth display | ≥300mm |
| Dynamic range | 0~120dB adjustable |
| One-click optimization function | Available |
| Self-motion optimize function | Available |
| Image multiplying factor | Available |
| Image mode | digital beam forming, tissue harmonic imaging |
| Picture function | picture zoom in and zoom par |
| Disk capacity | ≥160G |
| Frequency conversion | 2MHz-12MHz(Depending on the probe) |
| Pseudo color encoding | 16 kinds optional. |
| E-zoom | magnify 2 times of real time image |
| Focus position | dynamic electron focusing |
| Application Mode | Abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models; |
| Output Interface | USB. VIDEO .DICOME.FOOT SW. |
| USB Port:Our machine can connect the common printer . Used to print the measurement report page. | |
| Optional Probe | Convex,linear,Trans-vaginal,Micro-convex,4D probe,Phased probe |
