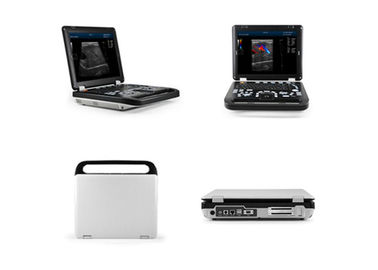

15”LED Portable Color Doppler Machine Digital Color Ultrasonic Diagnostic System

    • 15”LED Portable Color Doppler Machine Digital Color Ultrasonic Diagnostic System
    • 15”LED Portable Color Doppler Machine Digital Color Ultrasonic Diagnostic System
    • 15”LED Portable Color Doppler Machine Digital Color Ultrasonic Diagnostic System
    • 15”LED Portable Color Doppler Machine Digital Color Ultrasonic Diagnostic System
  • 15”LED Portable Color Doppler Machine Digital Color Ultrasonic Diagnostic System

    Product Details:

    Place of Origin: China
    Brand Name: BIO
    Model Number: 5000A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: Carton (49*27*49cm) 6kgs
    Delivery Time: 7 working - days since getting full payment
    Payment Terms: Credit card, Paypal, T/T
    Supply Ability: 200 units / month
    Contact Now
    Detailed Product Description
    Monitor: 15”LED Monitor Probe Connector: 2
    Max Scanning Depth: 2-30cm Software Packages: Obstetrics, Gynecology,Abdominal, Urology, Endocrinology, Vascular, Cardiology, Etc.
    Net Weight: 3.5kgs Color Depth: 24bit
    Resolution: 1024*768 Pixels Rotate Angle: ± 18°
    USB Ports: 2 3D/4D Module: 3D/4D Probe Optional
    Hard Disc: 64GB (SSD), 120G/200GB SSD (Optional)

    15”LED Portable Color Doppler Machine Digital Color Ultrasonic Diagnostic System

    Powerful function & Configuration


    • Large screen display
    • Built-in lithium battery
    • Small size, light weight, easy to carry, N.W. ≤ 5kg
    • Equipped with a wide range of probes for abdominal, obstetric, vascular, cardiac, small organ, urinary applications
    • Built-in 4D module with optional 4D volume probe
    • A variety of digital peripheral interfaces, provides a variety of image output methods
    • PC platform, easy to operate, meet various software upgrades



    Rich clinical application function


    • B+CF (Dual Images) • B+CF/PDI/DPDI+PW (Triplex)
    • Convex extended imaging technology
    • Linear array deflection/Trapezoidal imaging technology
    • Spatial compound Imaging technology
    • Panoramic imaging technology (optional)
    • 3D/4D imaging technology (optional)
    • Speckle noise removal technology
    • Pulse inversion tissue harmonic imaging technology (iTHI)



    Digital Specification



    Size (Diagonal) 15"LED display
    Contrast Ratio 800:01:00
    Resolution 1024*768 pixels
    Brightness 230 cd/m2
    Color Depth 24bit
    Rotate Angle ± 18°
    Grey Levels 256
    Scanning depth 2-30cm
    Transducer Ports 2
    USB Ports 2
    3D/4D module 3D/4D probe optional
    Hard Disc 64GB (SSD), 120G/200GB SSD (Optional)
    Printing Area Image, report, Image+report
    Ethernet Port 2(100Mb/1000Mb)
    External Display VGA, HDMI,etc..
    Printer(Optional) USB Printer, Digital Laser Printer, Digital B/W Thermal Printer
    Pan/Zoom Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion
    Scanning Method electronic linear, electronic convex, electronic micro-convex,
    electronic phased array, 4D probe



    General Performance
    Digital Broadband 12288 channels
    Beam-former Re-programmable
    Transmit Voltage Adjustable (15 steps)
    Beam-former Frequency Range 1~40 MHz
    Color Doppler
    PRF variable 0.6-20kHz
    Wall filter settings ≥ 5 steps
    Angle steering for linear transducers ±5°, ±10°, ±15°
    Real-time spatial filter ≥ 4 values
    CFM palette ≥10 maps
    PDI palette ≥10 maps
    Doppler frequency selection ≥ 4 values
    B/Color priority control / Color threshold control / CFM baseline control
    color frame averaging / Transparent Color Mapping (TCM)
    Pulsed Wave Doppler
    PRF variable 0.6-20 kHz
    Wall filter settings ≥ 10 steps
    Angle steering for linear transducers ±5°, ±10°, ±15°
    Stereo sound volume control
    PWD palette ≥10 maps
    Doppler frequency selection ≥ 4 values
    Real-time trace line with automatic calculation of spectrum parameters

    15”LED Portable Color Doppler Machine Digital Color Ultrasonic Diagnostic System15”LED Portable Color Doppler Machine Digital Color Ultrasonic Diagnostic System15”LED Portable Color Doppler Machine Digital Color Ultrasonic Diagnostic System
