    Product Details:

    Place of Origin: China
    Brand Name: BIO
    Certification: CE
    Model Number: BS5000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: Carton (71*19*54cm) 9kgs
    Delivery Time: 7 working - days since getting full payment
    Payment Terms: Credit card, Paypal, T/T
    Supply Ability: 200 units/month
    Contact Now
    Detailed Product Description
    Type: Handheld Vein Finder Optional: Table Stand Or Floor Stand
    Image Resolution: 360*240 Pixel Wavelengths: 850nm And 940nm
    Working Methods: Near Infrared Light Warranty: 12 Month

    Projection portable vein locator for clinicians alignment accuracy less than 0.5mm



    Product Application



    Vascular access is frequently required for patients admitted to hospitals. Fluid supplements and administration of medication are mainly dependent on vascular access. However, under some conditions like Young age, dark skin, general anxiety, a critically ill condition, and chronic illness can be a real challenge to insert an intravenous cannula even for experienced medical staff.



    Projection vein finder BS5000 is designed to improve vascular access treatment standards and provide the highest possible quality in patient care. It is widely used in every departments concerning to venipuncture. It not only improves clinicians efficiency in their daily heavy work, but also reduces patients' pain/stress and increases their satisfaction significantly.



    Venipuncture is the most common traumaticprocedure in medical field. Many nurses are under the hard pressure when doing venipuncture. In order to release pressure for nurses, as well as reduce the patients’ pain, BS5000 vein finder has come out to help finding veins properly.

    Useful for a variety of patients in many settings and serves to supplement existing venipuncture techniques.

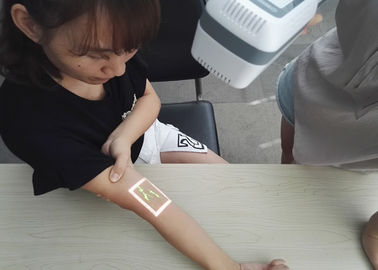

    Vein locator BS5000 uses an infra-red camera to highlight blood and then projects the image onto the skin, making easier for health care provides to do necessary needle sticks.

    Suitable for locate the veins on dorsal hand, arm, elbow, foot and head.



    Product Specification



    Product model BS5000
    Display mode Projection
    Source Type near-infrared light (no radiation)
    Infrared light wavelength 850nm&940nm
    Infrared radiation value ≤0.6mW/m²
    Alignment accuracy ≤0.5mm
    Image resolution 856*480pixel
    Brightness 4 adjustable levels
    Depth of detectio: shallow: 0~2mm
    deep: 2~4mm
    deeper: ≥4mm
    Optimal imaging distance 210±30mm
    Net weight 430g
    Dimension 213mm*65mm*62mm(L x W x H)
    Rated power 8VA
    Battery standby time ≤2.5h
    Charging time ≤4h







    Safety Using near infrared light, no laser, no radiation.
    Accurate Real show on skin, affectless images of veins.
    Fast Focus on vein automatically, show vein immediately.
    Non-touch Non-touch to anybody, prevent transmission of the virus.
    Wide application Adult, child, obese, dark-skinned and so on. All person available
    Free environment Effectively show the vein in dark or bright conditions, indoor and outdoor. Optional battery ensure 2 hours’ continuous working once external power supply is off.
    Portable and Flexible Easy to move, fix and operate. One button for power on/off, one button for brightness, one button for color selection Total three Buttons for all operations.
    Easy to learn, no need for complicated debugging and maintenance.
    Three colors offered black and green vein for being selected according to user’s habit.





    Projection Styple Near Infrared Light Portable Vein Locator For Clinicians Alignment With High Accuracy ≤0.5mm

    Projection Styple Near Infrared Light Portable Vein Locator For Clinicians Alignment With High Accuracy ≤0.5mmProjection Styple Near Infrared Light Portable Vein Locator For Clinicians Alignment With High Accuracy ≤0.5mm
